Vertical Mailboxes

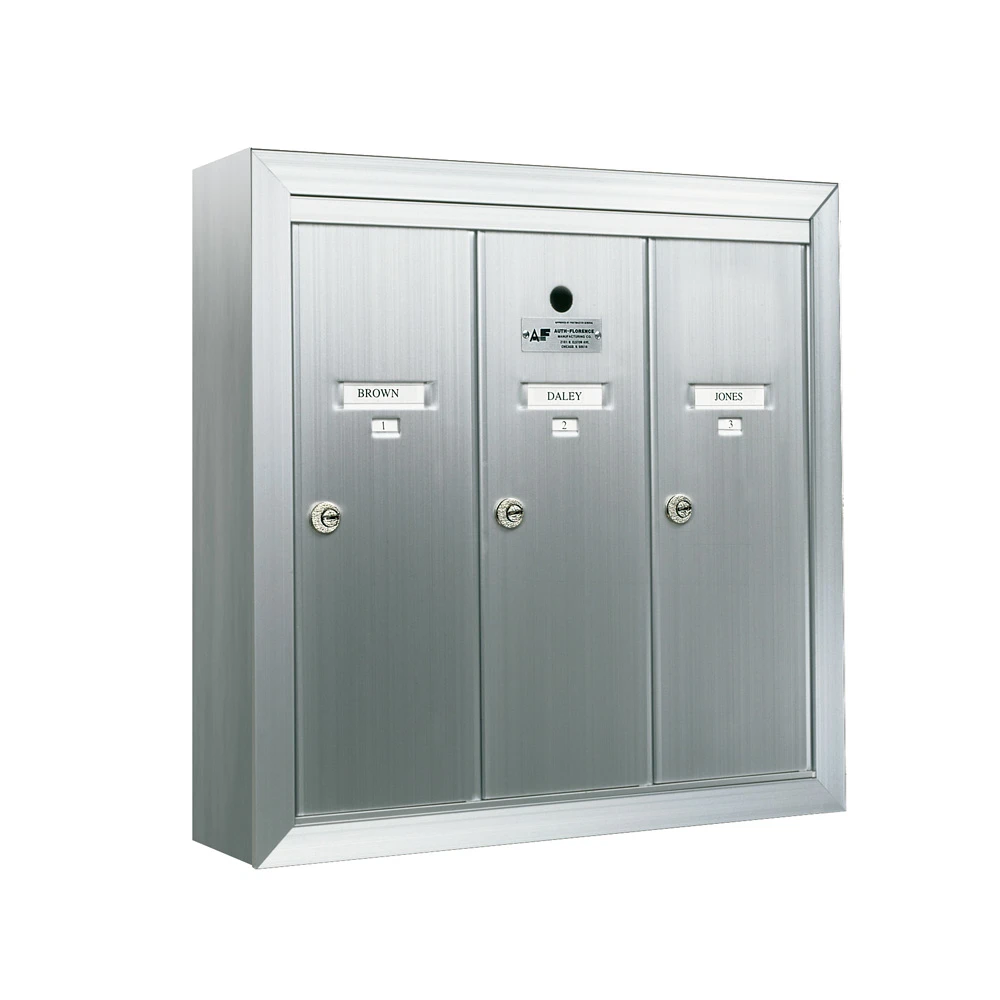

12503SMSHA
When your mailbox installation location has limited wall depth or walls that are covered in material which makes it difficult to cut a rough opening, our vertical mailbox with surface mount collar offers a solution with a sleek, finished look. Vertical mailboxes are not USPS approved for new installations. The USPS requires properties upgrade to current standards when any remodel or renovation occurs to the property. Any remodel big or small should drive an upgrade to CBU or 4C mailboxes. As these units are top-loading, they should be protected from the weather by installing indoors or under a covered area. Made from heavy-gauge extruded aluminum for durability with striated doors and trim to resist scratches. Five-pin cylinder locks help keep mail contents secure and each compartment features a tenant name card holder.
Total Mailbox Compartments 3
Product Dimensions 19.13”H x 19”W x 6.90”D
Product Weight 25 lbs
CREATE PRODUCT DRAWING
1250-3 Cut Sheet (PDF)
Current Selection: 12503SMSHA
$317.00
[woo_quick_view product_id="391675"]
Door ID for this Product:
Number and name slot with paper cards for field identification of apartment name and tenant number supplied for each tenant door
Carton Dimensions: 20”H x 20”W x 7”D
Lead Time: 5 Working Days
Get Custom Quote Get Help

  • Includes vertical mailbox with 3 doors, top load, surface mounted
  • Surface mount collar included for flush wall mounting
  • Vertical mailboxes do not meet current USPS requirements for centralized mail delivery
  • Anodized aluminum mailbox finish with steel surface mount collar with matching silver powder coat finish
  • Striated doors to resist scratching
  • Top loading with surface mount collar for flush wall mounting - no wall cut required!
  • Tenant doors include 5-pin cam lock with two (2) keys each
  • Number and name slot with paper cards for field identification of apartment name and tenant number supplied for each tenant door
  • For indoor installation

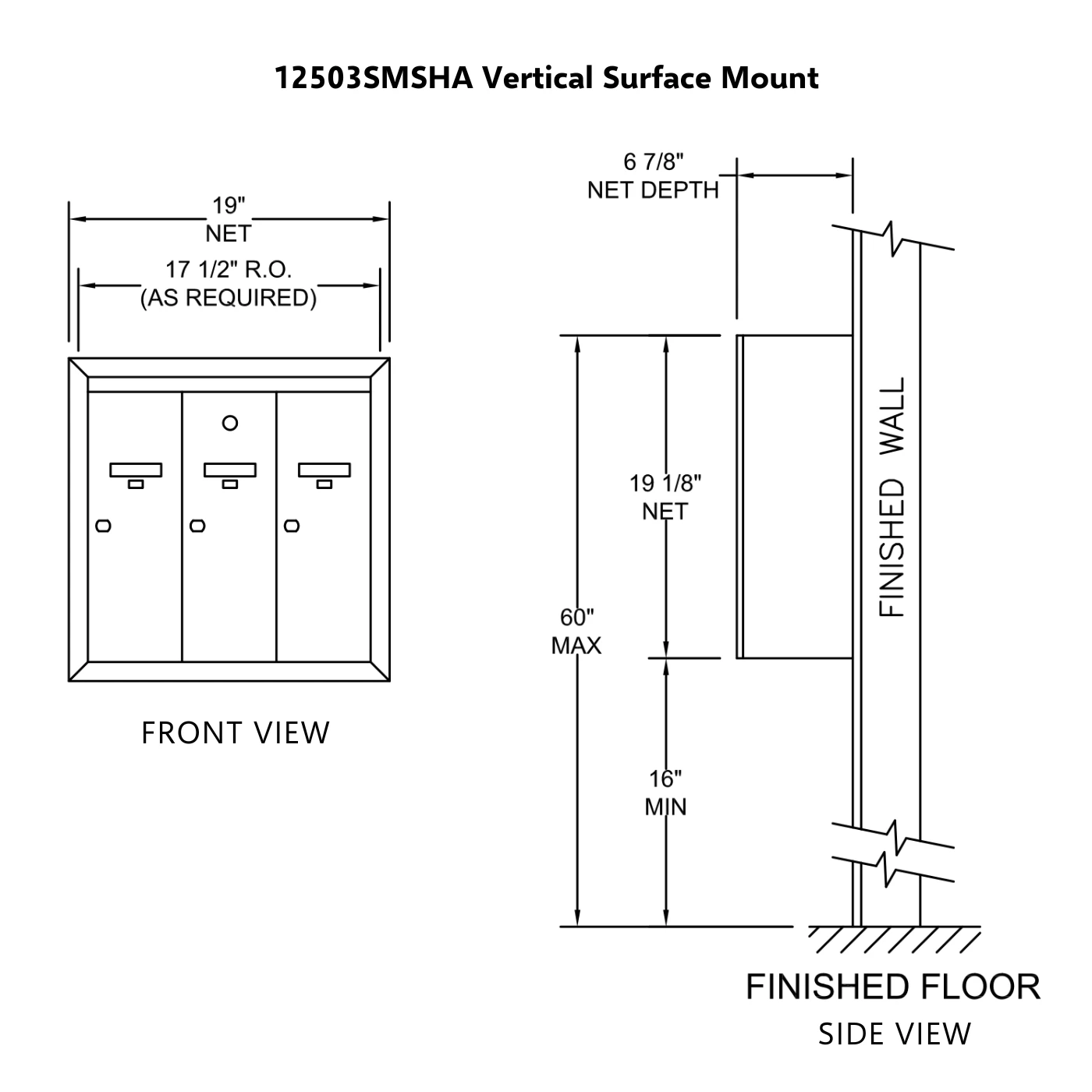

  • Product Dimensions: 19.13”H x 19”W x 6.90”D
  • Installed unit height is 19-1/8"
  • Installed unit width is 19"
  • Installed unit depth is 6-7/8"
  • Rough opening Dimensions: 17.75”H x 19”W x 6.88”D

  • Standard Mail (16" Tenant): 16”H x 5.50”W x 6”D
