Vertical Mailboxes

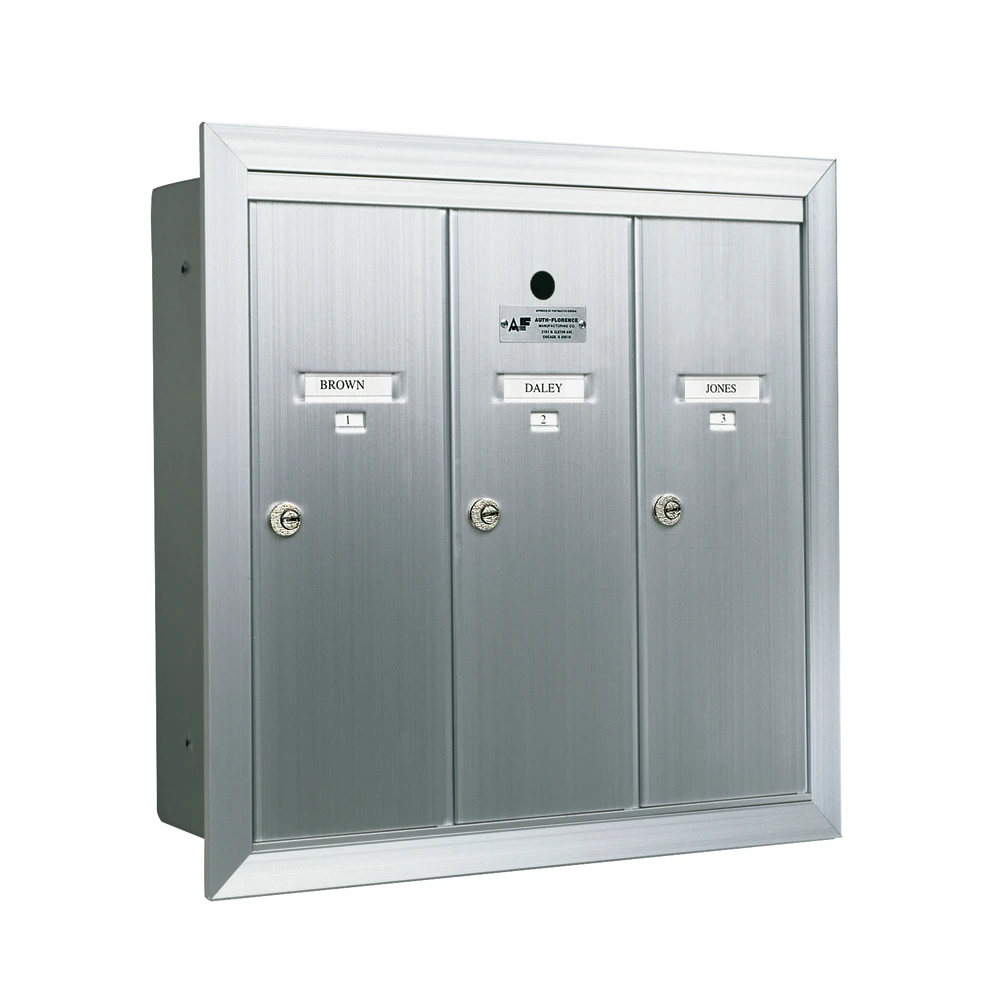

12503HA
Our small profile vertical mailboxes are designed to fit into smaller areas with minimal wall-space. Vertical mailboxes are not USPS approved for new installations. The USPS requires properties upgrade to current standards when any remodel or renovation occurs to the property. Any remodel big or small should drive an upgrade to CBU or 4C mailboxes. As these units are top-loading, they should be protected from the weather by installing indoors or under a covered area. Made from heavy-gauge extruded aluminum for durability with striated doors and trim to resist scratches. Five-pin cylinder locks help keep mail contents secure and each compartment features a tenant name card holder.
Total Mailbox Compartments 3
Product Dimensions 19.13”H x 19”W x 6.38”D
Product Weight 20 lbs
CREATE PRODUCT DRAWING
1250-3 Cut Sheet (PDF)
Current Selection: 12503HA
$317.00
Add To Cart
Door ID for this Product:
Number and name slot with paper cards for field identification of apartment name and tenant number supplied for each tenant door.
Carton Dimensions: 20”H x 20”W x 7”D
Lead Time: 5 Working Days
Get Custom Quote Get Help

  • Includes vertical mailbox with 3 doors, top load, fully recessed
  • Vertical mailboxes do not meet current USPS requirements for centralized mail delivery
  • Anodized aluminum finish
  • Striated doors to resist scratching
  • Top loading and fully recessed for full in wall mounting
  • Tenant doors include 5-pin cam lock with two (2) keys each
  • Number and name slot with paper cards for field identification of apartment name and tenant number supplied for each tenant door.
  • For indoor installation

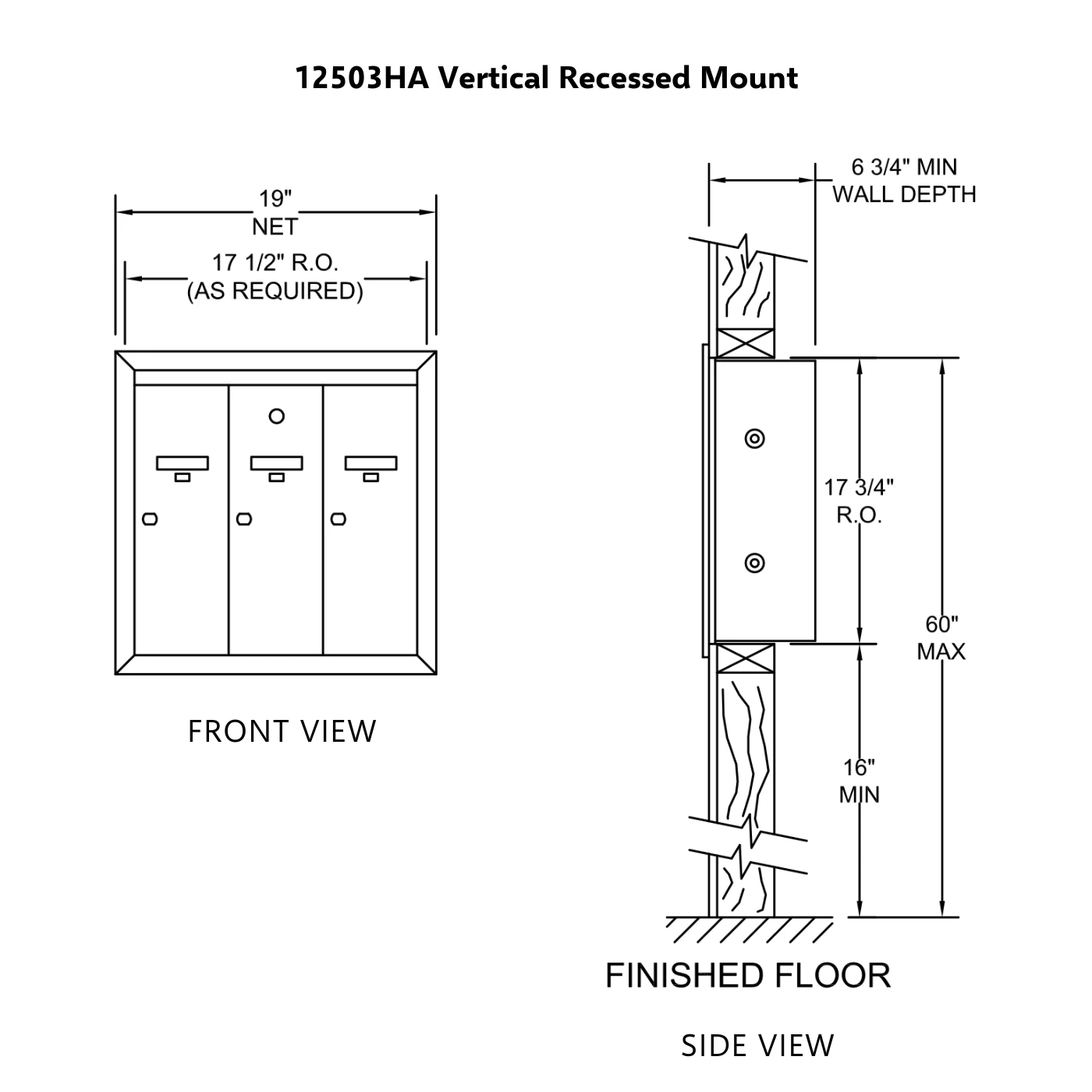

  • Product Dimensions: 19.13”H x 19”W x 6.38”D
  • Installed unit height is 19-1/8"
  • Installed unit width is 19"
  • Installed unit depth is 6-1/8"
  • Rough opening Dimensions: 17.75”H x 19”W x 6.13”D

  • 3 x Standard Mail (16" Tenant): 16”H x 5.50”W x 6”D

12503HA
