Home / All Products / Horizontal Mailboxes / 170085A
FIND A DEALER
Horizontal Mailboxes
170085A

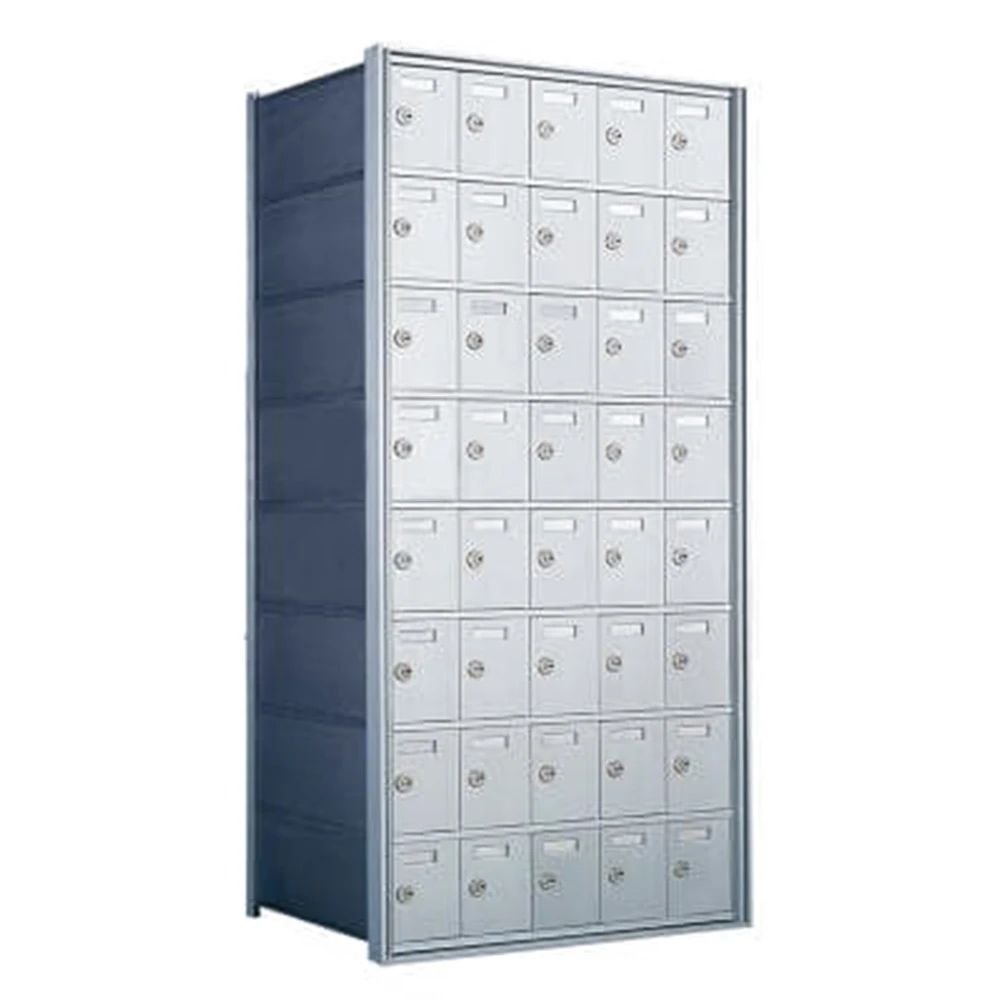

A favorite of university housing managers, this rear-loading indoor mailbox solution helps keep your private delivery mail area organized. Used for private delivery, there are no minimum or maximum mounting height requirements since they are not constrained by postal installation regulations. The 1700 series has an exposed back for easy distribution access to all mailbox compartments at once, so planning for additional space will be necessary to accommodate a secure room behind the mailbox installation.
Total Mailbox Compartments 40
Product Dimensions 46.63”H x 24.38”W x 16.50”D
Product Weight 98 lbs
CREATE PRODUCT DRAWING
170085 Cut Sheet (PDF)
Current Selection: 170085A
$2,396.00
[woo_quick_view product_id="389309"]
Door ID for this Product:
Number slot with paper cards for identification. Each tenant door includes clear plastic window with metal backplate and card for tenant number identification and labeling in the field.
Lead Time: 28 Working Days
Get Custom Quote Get Help

  • Horizontal mailbox, front load with 40 doors, rear load, fully recessed
  • Horizontal mailboxes do not meet current USPS requirements for centralized mail delivery
  • All aluminum construction with a clear anodized aluminum finish
  • Rear loading for full in wall mounting and installation - private delivery from rear of mailbox and tenant mail retrieval from front of mailbox
  • Tenant doors include 5-pin cam lock with two (2) keys each
  • Number slot with paper cards for identification
  • Each tenant door includes clear plastic window with metal backplate and card for tenant number identification and labeling in the field
  • Horizontal mailbox unit is 8 doors high and 5 doors wide

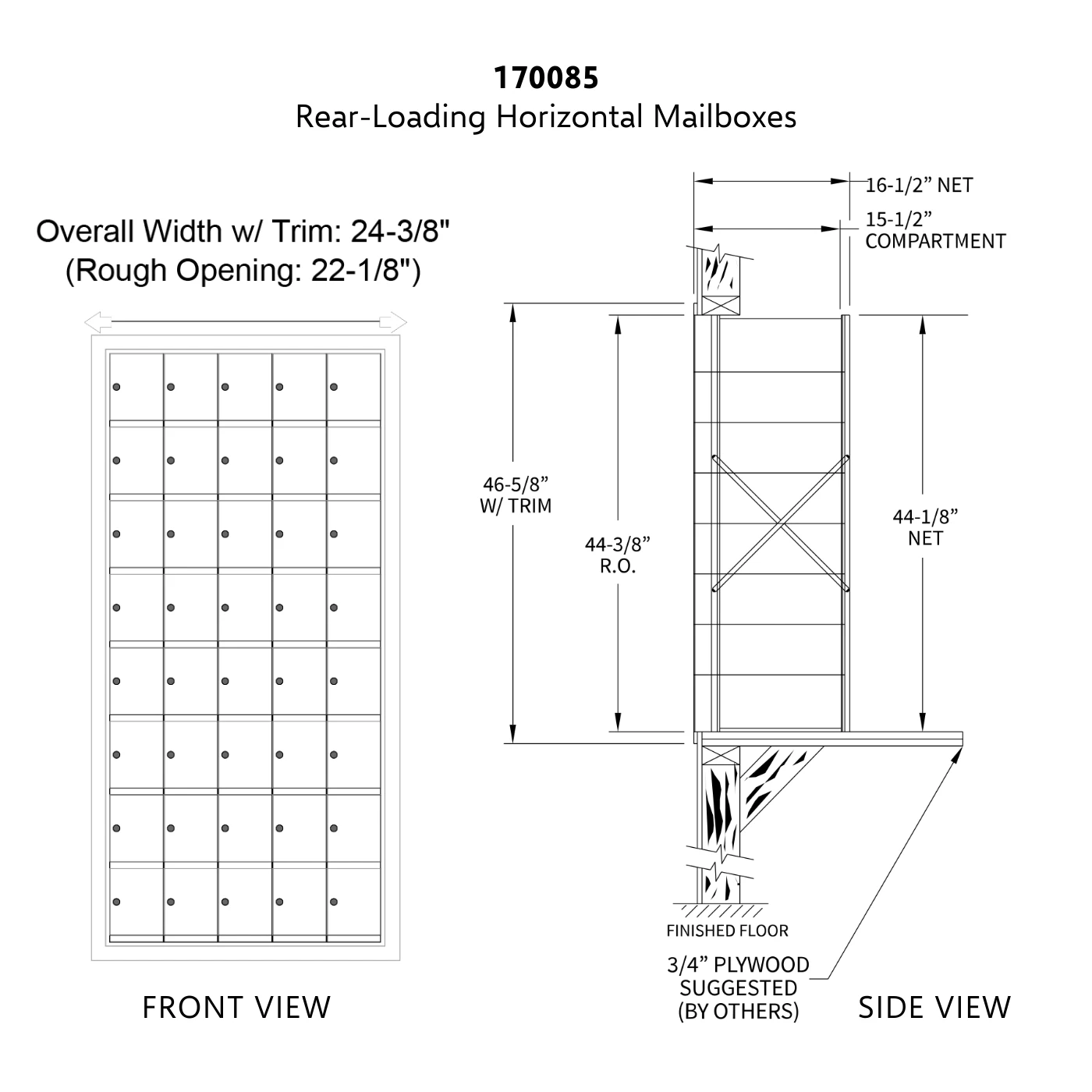

  • Product Dimensions: 46.63”H x 24.38”W x 16.50”D
  • Rough Opening Height is 44-7/16"
  • Rough Opening Width is 22-1/8"
  • Minimum wall depth of 17" required
  • Rough opening Dimensions: 44.44”H x 22.13”W x 17”D

  • Standard Mail (1H x 1W Tenant): 5”H x 4”W x 15.50”D
