Horizontal Mailboxes
140075OUA
Florence horizontal mailboxes are designed for use in larger multi-family apartment buildings, dormitories, office high rises. These time-tested mailboxes are not USPS approved for new installations. The USPS requires properties upgrade to current standards when any remodel or renovation occurs to the property. Any remodel big or small should drive an upgrade to CBU or 4C mailboxes.
Total Mailbox Compartments 30
Product Dimensions 41.75”H x 36.13”W x 16.50”D
Product Weight 110 lbs
CREATE PRODUCT DRAWING
140075OU Cut Sheet (PDF)
Current Selection: 140075OUA
$3,882.00
[woo_quick_view product_id="392115"]
Door ID for this Product:
Number slot with paper cards for identification. Each tenant door includes clear plastic window with metal backplate and card for tenant number identification and labeling in the field.
Carton Dimensions: 40”H x 35”W x 17”D
Lead Time: 28 Working Days
Get Custom Quote Get Help

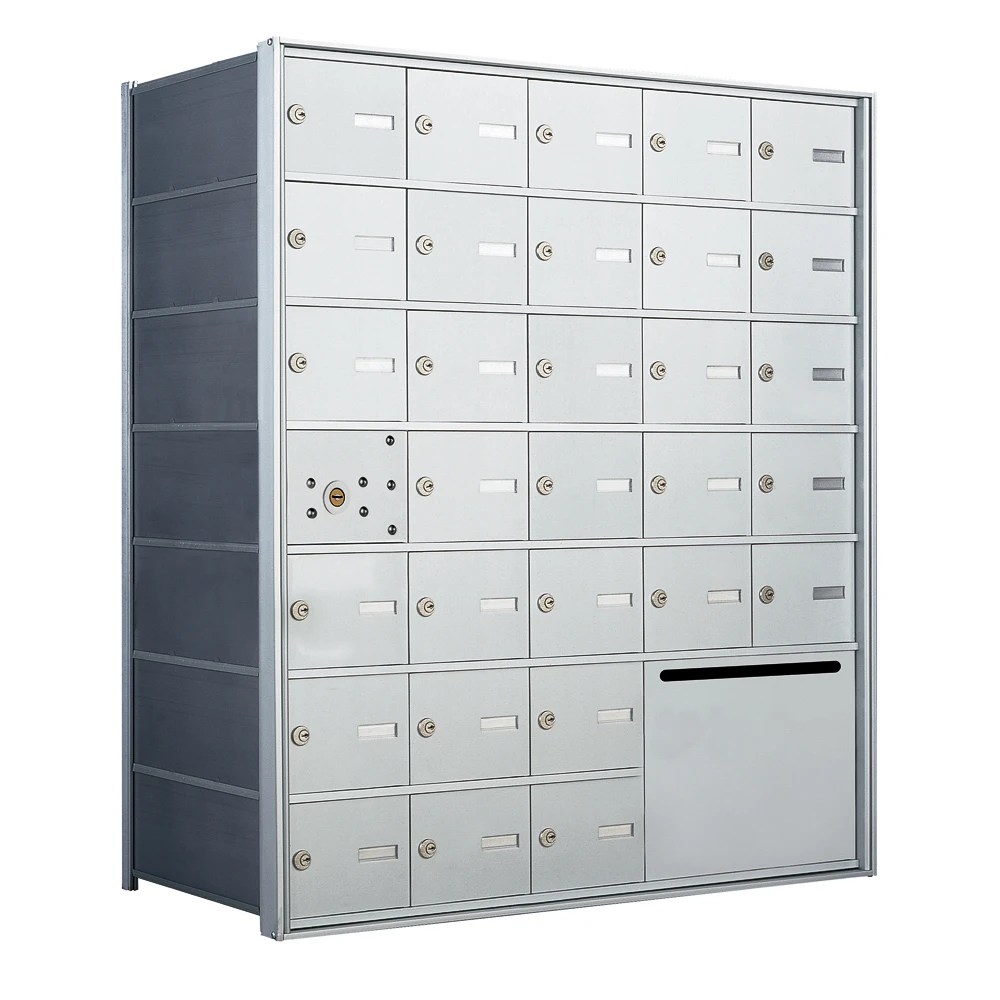

  • Horizontal mailbox with 30 doors and 1 outgoing collection box, front load, fully recessed
  • Horizontal mailboxes do not meet current USPS requirements for centralized mail delivery
  • All aluminum construction with a clear anodized aluminum finish
  • Front loading for full in wall mounting and installation
  • Tenant mail retrieval and USPS delivery from front of mailbox - one compartment reserved for master / postal access for delivery to unit
  • Tenant doors include 5-pin cam lock with two (2) keys each
  • Number slot with paper cards for identification
  • Each tenant door includes clear plastic window with metal backplate and card for tenant number identification and labeling in the field
  • Outgoing mail compartment with mail slot (no lock)
  • Horizontal mailbox unit is 7 doors high and 5 doors wide. One compartment reserved for USPS arrow lock.

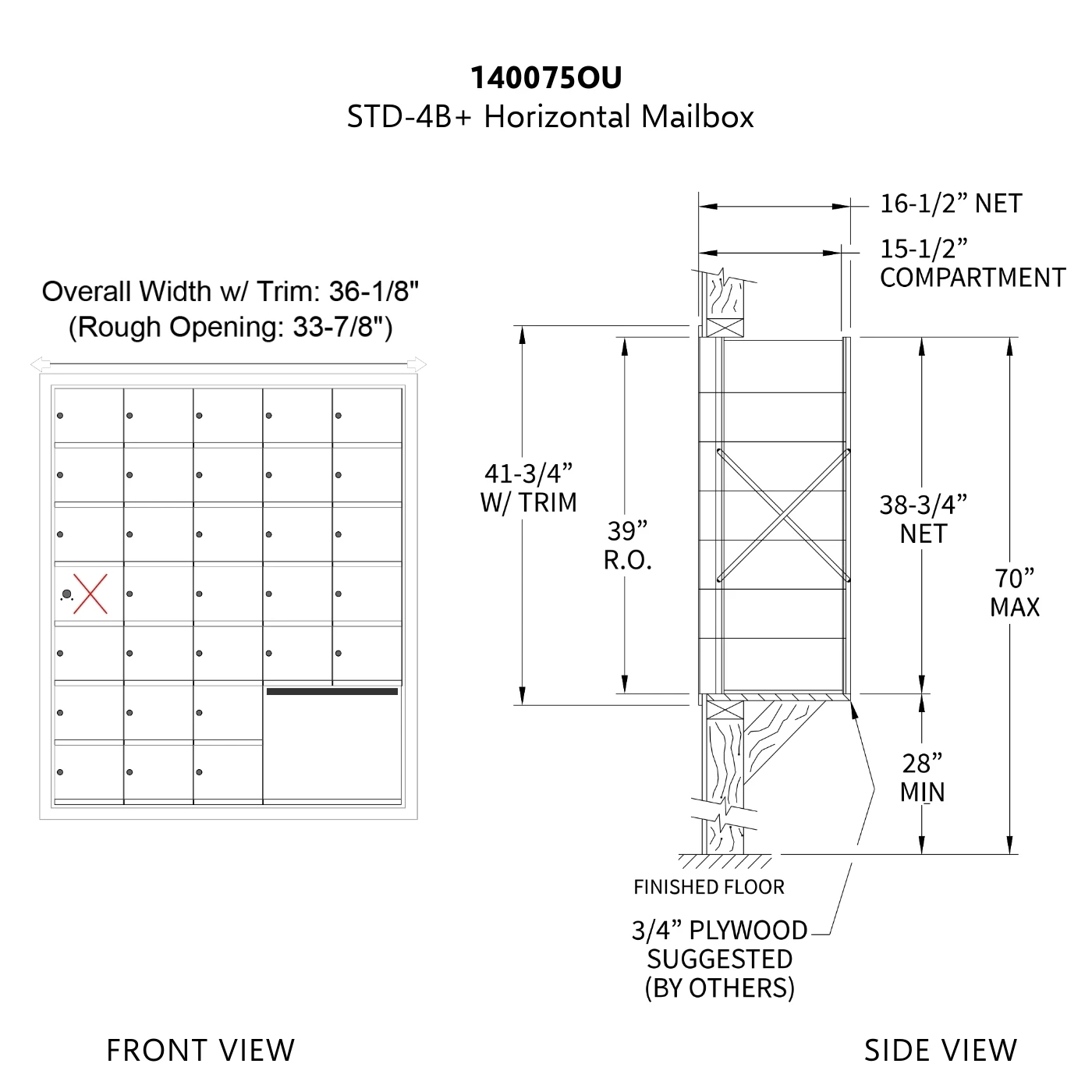

  • Product Dimensions: 41.75”H x 36.13”W x 16.50”D
  • Rough Opening Height is 39"
  • Rough Opening Width is 33-7/8"
  • Minimum wall depth of 17" required
  • Rough opening Dimensions: 39”H x 33.88”W x 17”D

  • Master Postal (1H x 1W Master): 5”H x 6.38”W x 6.38”D
  • Master Collection (2H x 2W Master): 10.38”H x 12.88”W x 15.50”D
  • Standard Mail (1H x 1W Tenant): 5”H x 6.38”W x 15.50”D

140075OUA
